Z32

79 m2

Z32,

Author: Z500

House plan price: 1970 GBP

Order

Topic*

Name*

Phone number*

Email address*

Delivery address

Additional information

Enter the following code*

captcha

Cost of construction: Individual pricing

Ask about offer

Topic*

Name*

Phone number*

Email address*

Additional information

Enter the following code*

captcha

Parameters

Usable area / net floor 79.35 / 93.97 m²
Building area 64.99 m²
Cubic capacity 222.4 m³
Height 7.12 m
Roof slope 40 °
Roof area 110 m²

Minimum plot size 15 x 15 m

Levels 2
Rooms 0

Style Tradycyjny

House plan price 1 970,00 GBP
Cost of construction Individual pricing

Description

<p>
<strong>Z32 house design</strong> is perfect for those, who are looking for a small, inexpensive and functional house. <strong>The entrance</strong> to the building i<strong>s covered by a small gable roof</strong>, supported by the pillars. On the ground floor the day zone has been optimally designed – in the kitchen annexe (single-spatially combined with a living room) there is a wall which creates an alcove for a fridge. In the opposite part of the building there is a space for two rooms, a bathroom and a utility room.&nbsp;</p>
<p>
<strong>The centrally located</strong> chimney enables to heat the whole house with the use of the fireplace. It is <strong>possible to enlarge the utility room</strong> by moving the bathroom in a place of a neighbouring room. Thanks to a such solution it is possible to build a small biofuel boiler room. <strong>In the attic</strong> there are two separate rooms and a small bathroom, which are designed in the way, that it can function as a 4-5-person family.</p>

Suggested materials and technology

Ściany beton komórkowy, ceramika, silikaty
Dach dachówka, blachodachówka
Strop wiązary

Floor plans

rzut
rzut
rzut

Plot plan

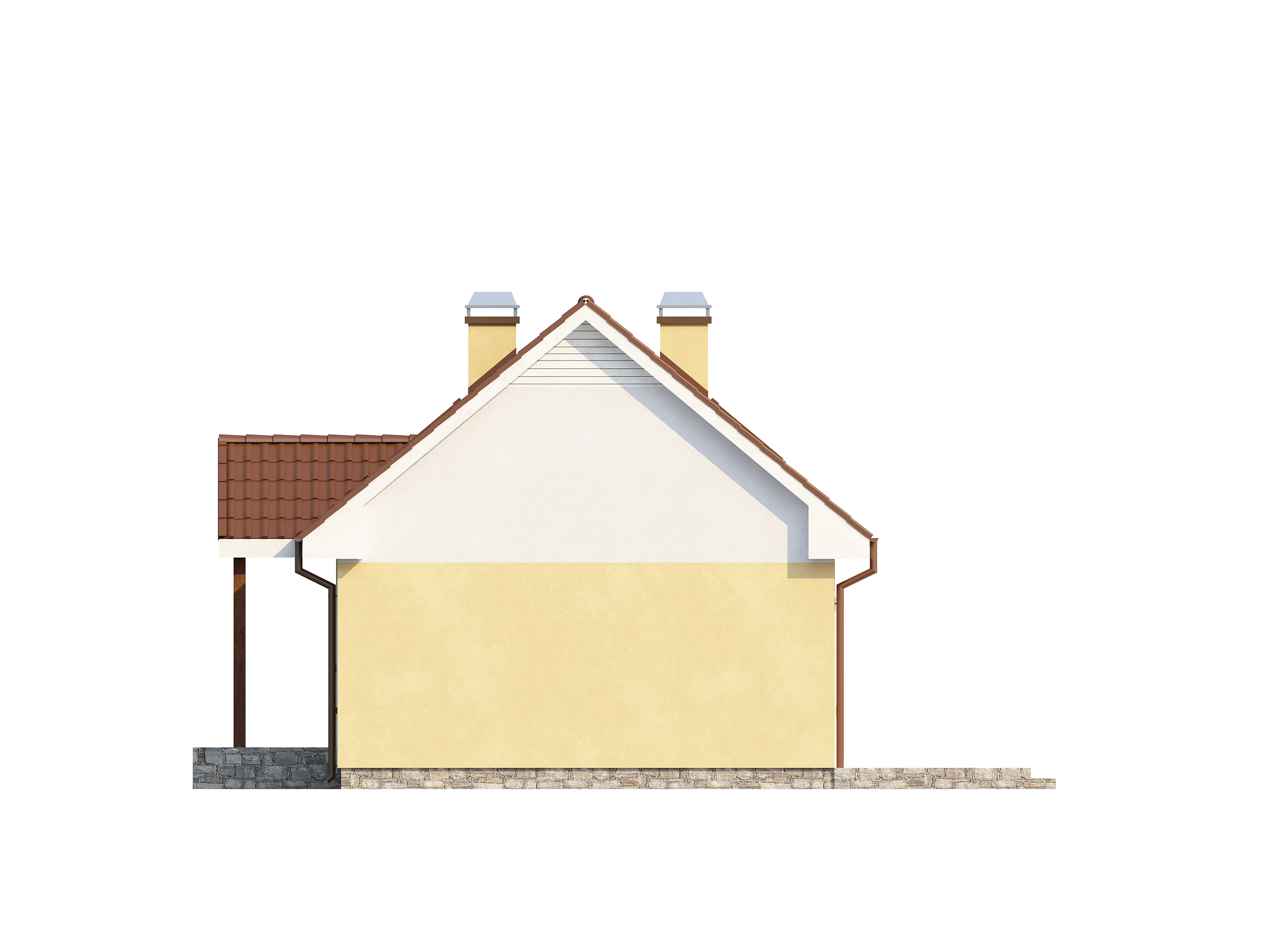

Elevation

elewacja
elewacja
elewacja
elewacja
