Z38

108 m2

Z38,

Author: Z500

House plan price: 2290 GBP

Order

Topic*

Name*

Phone number*

Email address*

Delivery address

Additional information

Enter the following code*

captcha

Cost of construction: Individual pricing

Ask about offer

Topic*

Name*

Phone number*

Email address*

Additional information

Enter the following code*

captcha

Parameters

Usable area / net floor 107.9 / 110.57 m²
Building area 73.49 m²
Cubic capacity 284.3 m³
Height 7.5 m
Roof slope 30 °
Roof area 110.06 m²

Minimum plot size 13.08 x 13.08 m

Levels 2
Rooms 0

Style Tradycyjny

House plan price 2 290,00 GBP
Cost of construction Individual pricing

Description

<p>
<strong>Z38 design</strong> is an optimal example of the house suitable for a narrow plot. Because of a simple plan of the house, its <strong>building is inexpensive, easy and fast</strong>. The next advantage of the Z38 design is a comfortable and <strong>fully functional attic</strong> thanks to a higher knee wall. At the front, the body of the building is varied by a balcony, which create a roofed arcade above the entrance.</p>
<p>
<strong>On the ground floor</strong> there are: an entrance hall, a bathroom, a utility room, a living room combined with a kitchen annexe and a dining room as well as a room, which can function as a home office. The living room and the kitchen have the access to the terrace, which is covered with an openwork pergola.<strong> In the living room </strong>a place for<strong> a fireplace</strong> and a TV annexe have been anticipated. The interesting buffet in the kitchen covers a kitchen sink and improve the aesthetic and functional qualities of the interior.&nbsp;</p>
<p>
<strong>In the attic</strong> there are three bedrooms, a bathroom and a walk-in wardrobe. The rooms on the first floor can be functionally developed because of the<strong> high knee wall </strong>and a lack of the angles.</p>

Suggested materials and technology

Ściany beton komórkowy, ceramika, silikaty
Dach dachówka, blachodachówka
Strop betonowy gęstożebrowy

Floor plans

rzut
rzut
rzut

Plot plan

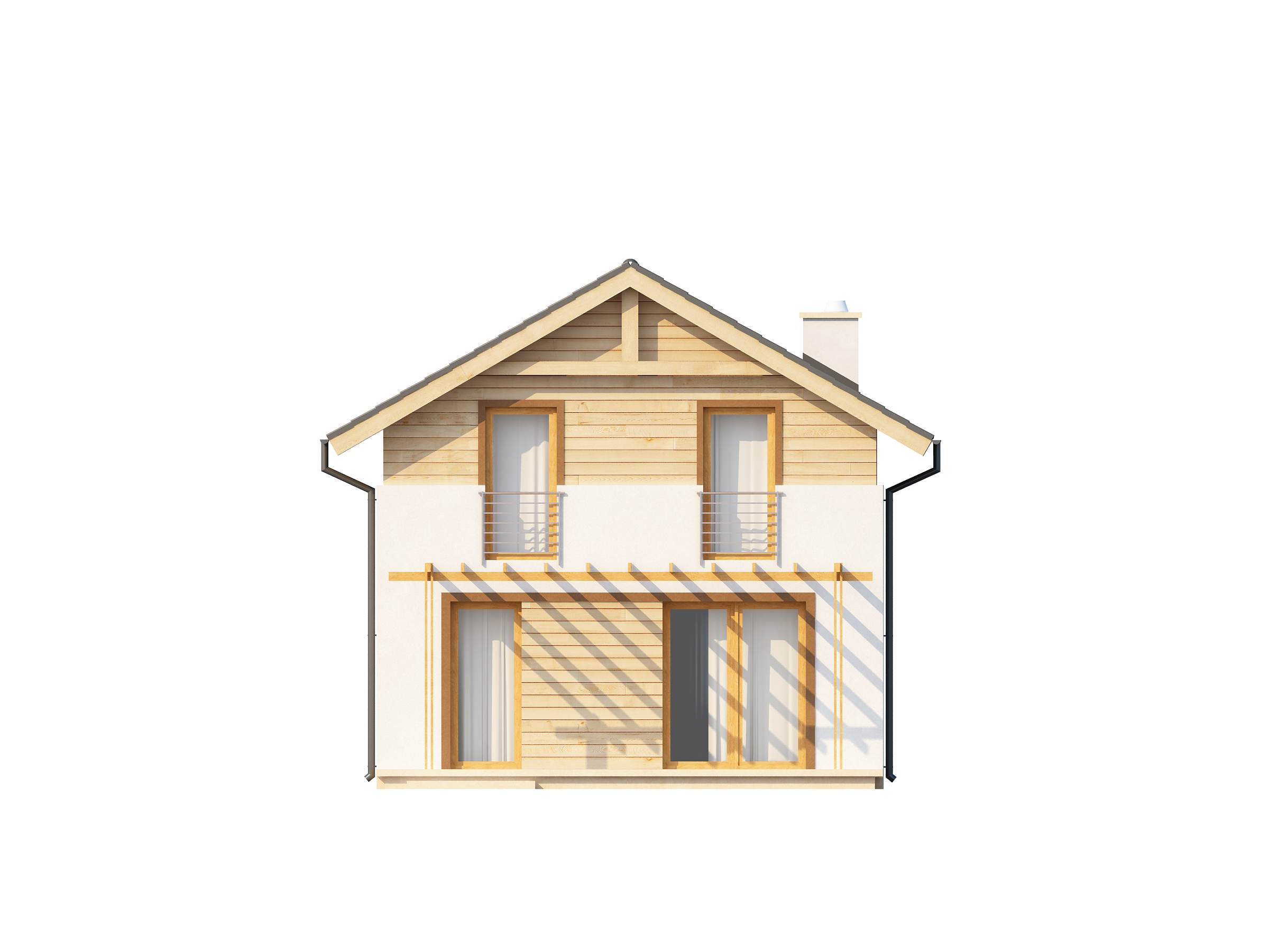

Elevation

elewacja
elewacja
elewacja
elewacja
