Z54

134 m2

Z54,

Author: Z500

House plan price: 2570 GBP

Order

Topic*

Name*

Phone number*

Email address*

Delivery address

Additional information

Enter the following code*

captcha

Cost of construction: Individual pricing

Ask about offer

Topic*

Name*

Phone number*

Email address*

Additional information

Enter the following code*

captcha

Parameters

Usable area / net floor 133.77 / 180.14 m²
Building area 123.5 m²
Cubic capacity 398.7 m³
Height 7.23 m
Roof slope 32 °
Roof area 166 m²

Minimum plot size 20.24 x 20.24 m

Levels 2
Rooms 0

Style Tradycyjny

House plan price 2 570,00 GBP
Cost of construction Individual pricing

Description

<p>
<strong>Z54</strong> is a neat and functional house with a functional attic. <strong>The family members will be enchanted by its look and a spacious interior with a possibility of a simple change of the layout of the rooms</strong>. A simple structure and divisions made mainly by the partition walls enable to freely arrange the house.</p>
<p>
The design has been divided into three parts. The first one is <strong>a day zone on the ground floor with a comfortable living room, a dining room in a modern bay window and a convenient kitchen with a capacious larder</strong>. There is also the entrance to the roofed terrace from the living room. In the right part of the house there are two rooms. The bigger is the master bedroom and a smaller one – a home office or a guest room. There is also a bathroom and <strong>convenient stairs with landing</strong>, which lead to the attic. The attic can be arranged as a night zone for children – there are two spacious bedrooms and a large bathroom.</p>
<p>
In the design there is a possibility of removing the bay window. <strong>It will enable to place Z54 also on a plot, which is 60 cm smaller – 11.64m wide.</strong></p>
<p>
 </p>

Suggested materials and technology

Ściany beton komórkowy, ceramika, silikaty
Dach dachówka, blachodachówka
Strop betonowy gęstożebrowy

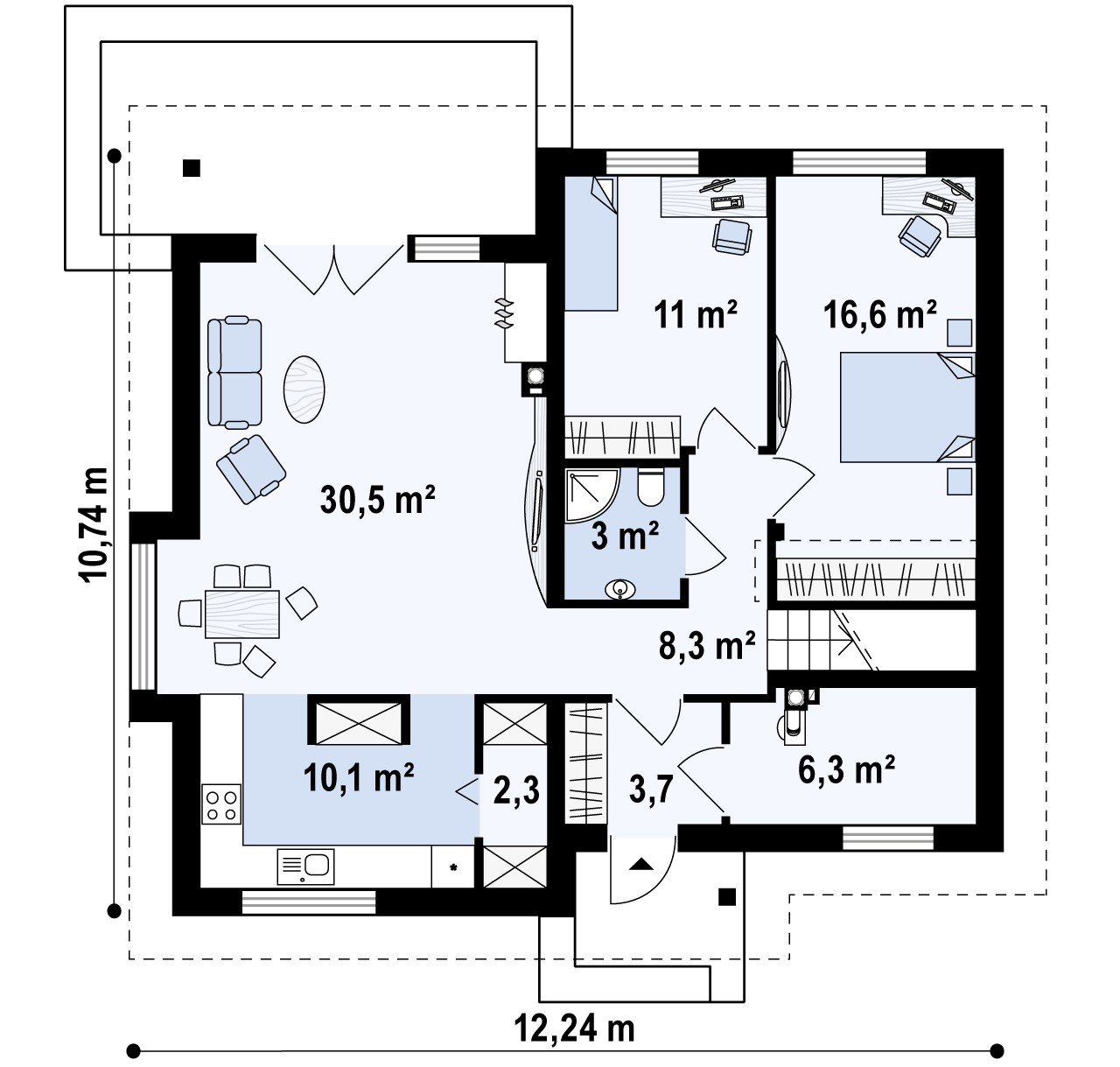

Floor plans

rzut
rzut
rzut

Plot plan

Elevation

elewacja
elewacja
elewacja
elewacja
