Z90

149 + 23 m2

Z90,

Author: Z500

House plan price: 2590 GBP

Order

Topic*

Name*

Phone number*

Email address*

Delivery address

Additional information

Enter the following code*

captcha

Cost of construction: Individual pricing

Ask about offer

Topic*

Name*

Phone number*

Email address*

Additional information

Enter the following code*

captcha

Parameters

Usable area / net floor 148.77 / 206.45 m²
Building area 158 m²
Cubic capacity 489.75 m³
Height 6.85 m
Roof slope 32 °
Roof area 220.43 m²

Minimum plot size 25.48 x 25.48 m

Levels 2
Rooms 0

Style Tradycyjny

House plan price 2 590,00 GBP
Cost of construction Individual pricing

Description

<p>
<strong>The design of the house Z90</strong> is an interesting offer of a building with an attic and a side garage. It is a house of a simple body, covered with a pyramid hip roof.</p>
<p>
<strong>The entrance of the building</strong> is decorated with a small arcade.The entrance hall from which you can walk to the larder and the hall divide the ground floor into two parts. From the hall there is a free access to the day one, that is to a living room with a kitchen, and to the night zone. The design includes also a big utility room with a direct passage to the garage. <strong>In the private zone</strong> there is a bedroom and a spacious bathroom. The staircase that leads to the attic is <strong>sectioned from the hall</strong>. On the attic there are two spacious bedrooms. If there is a need for that, the attic can be developed to create three rooms.</p>
<p>
In the basic variant <strong>Z90</strong> there is a possibility of removing the windows in the back wall of the building that can be advantageous for the plots that are impossible to arrange. As an option there is also a variant with the windows and a terrace on the back wall.</p>

Suggested materials and technology

Ściany beton komórkowy, ceramika, silikaty
Dach dachówka, blachodachówka
Strop betonowy gęstożebrowy

Floor plans

rzut
rzut
rzut

Plot plan

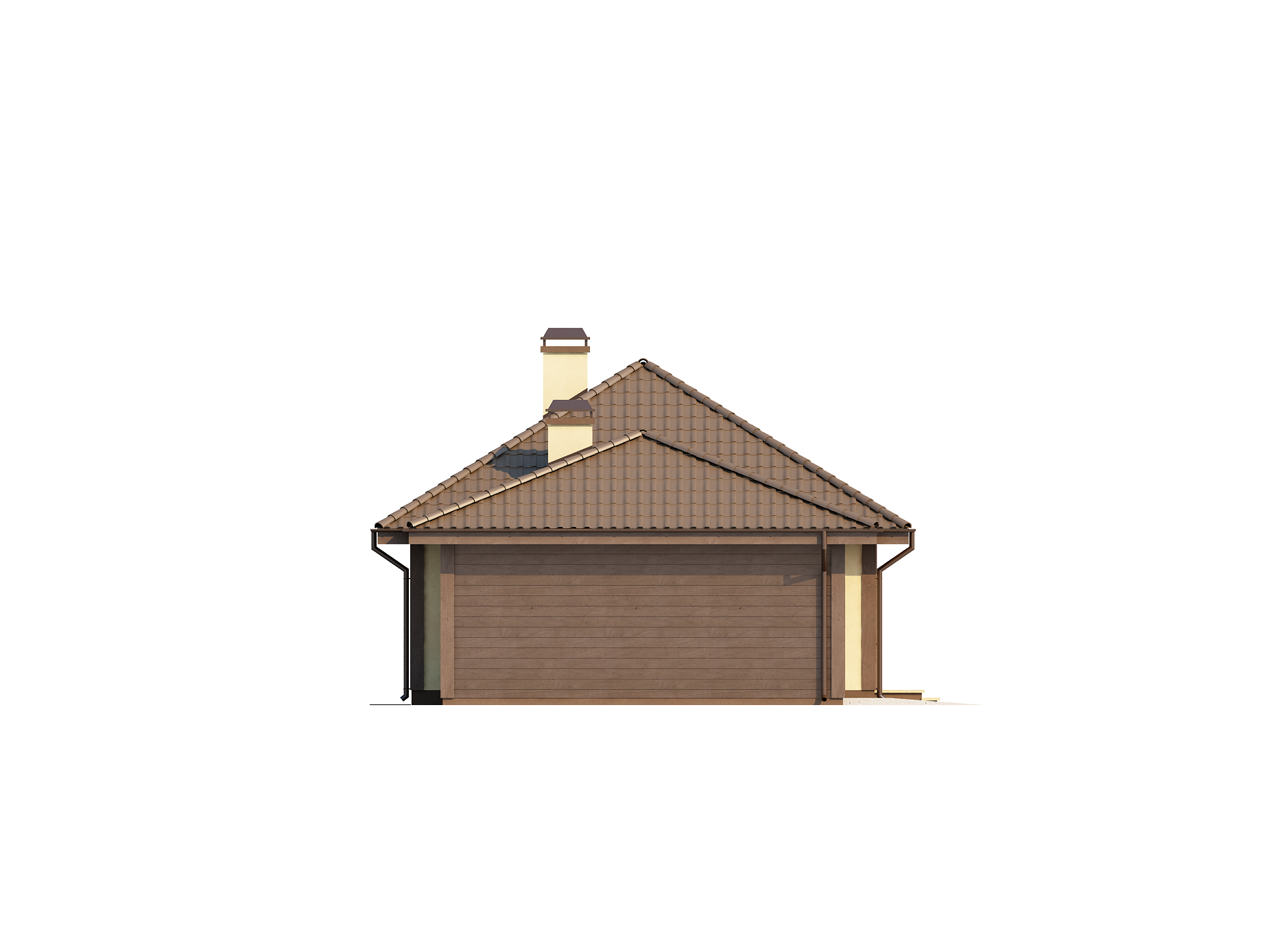

Elevation

elewacja
elewacja
elewacja
elewacja
